Jiaxing Siren Machinery Co.Ltd

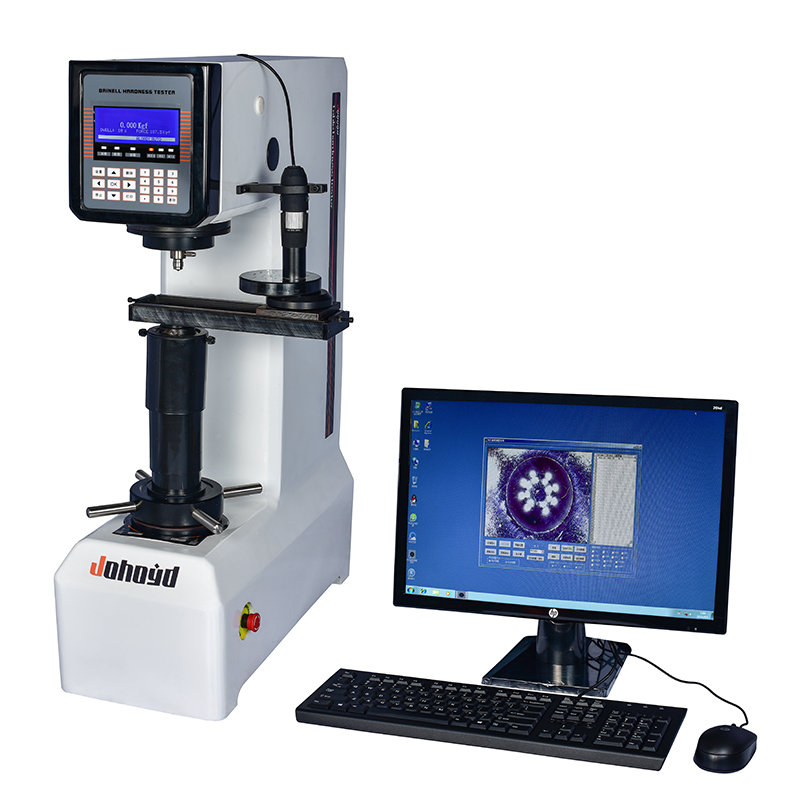

The computer-based electronic Brinell hardness tester HBE-3000S removes the original weight loading, and adopts a closed-loop control system that is controlled by a single-chip microcomputer, a sensor collects signals, and a stepper motor is loaded. Ensure that the force value is more accurate and the indication value is more stable. Equipped with a mobile measurement platform and a computer measurement system, it has good operability and humanization, high test speed and cost performance, and can save, print, analyze and issue test reports for test results.
Main functions and features:
1. Equipped with sensors and microcomputer control system, the test results are stable;
2. Possesses level 10 test force, and can test a wider range;
3. Equipped with high-performance stepping motor to automatically load and unload, the noise generated during the test is smaller;
4. The shell is cast in one time, the structure is stable and does not deform, and it can work in a relatively harsh environment;
5. The surface is treated with the car paint process, which has strong scratching ability and is still bright as new after years of use;
6. This machine can be equipped with Brinell image measurement software, which greatly improves work efficiency.
Main purpose and scope of use:
1. It is suitable for hardness tester testing of metal materials with large grains, which can reflect the comprehensive performance of the material;
2. Cast iron, steel, non-ferrous metals, especially for softer metals, such as pure aluminum, lead, tin, etc.
3. It can be used to measure the hardness of some non-metallic materials such as hard plastics and bakelite.
Software introduction:
    The Brinell hardness tester is mainly used for the hardness measurement of cast iron, steel, non-ferrous metals and soft alloys. It can reflect the comprehensive performance of the material and is not affected by the microsegregation and uneven composition of the sample. A high precision hardness test method. It is widely used in metallurgy, forging, unquenched steel and non-ferrous metals and other industrial fields, laboratories, colleges and universities, and scientific research institutions.
    The Brinell hardness measurement and analysis system is a Brinell hardness measurement and analysis system designed using optical visual inspection technology and image analysis processing technology. The system collects the indentation through the optical system, and the software measures and analyzes the hardness, avoiding the influence of human factors and greatly improving the measurement efficiency and measurement accuracy.

Technical parameter：

Accessories
